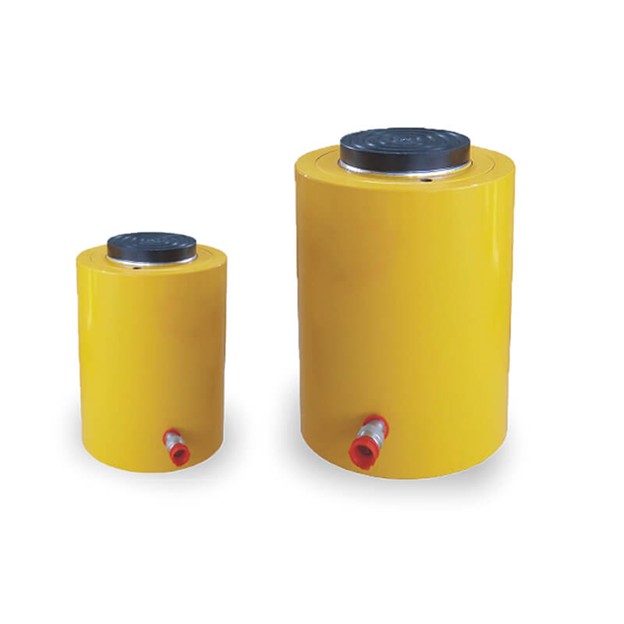

Our Hydraulic Jacks are engineered for demanding industrial applications where durability, precision, and safety are essential. Designed for single-acting operation with load return, these jacks offer reliable performance and are built to withstand harsh working environments.

Product Specification

Product Features

Single-Acting Operation

  • Load return mechanism for efficient and controlled retraction after use.

Corrosion-Resistant Build

  • Equipped with a hardened chrome-plated piston to resist scratching and corrosion, ensuring long-term reliability.

  • Finished with a high-quality anti-corrosion paint coating for added protection in tough conditions.

Extended Service Life

  • Integrated dust seal ring prevents contaminants from entering the cylinder, helping prolong operational life and maintain performance.

Enhanced Stability

  • Built to withstand up to 5% lateral load, providing dependable support even under slight off-center applications.

Specification Table

Capacity ton(KN) Stroke Model Effective area cm2 Oil capacity cm3 Collapsed height Extended height Outside diameter Bore diameter Plunger diameter Weight
H(mm) A(mm) B(mm) D(mm) E(mm) F(mm) kg
50 50 DS50-50 78.5 392.5 162 212 140 100 70 17
100 DS50-100 78.5 785 212 312 140 100 70 21
150 DS50-150 78.5 1177.5 262 412 140 100 70 27
200 DS50-200 78.5 1570 312 512 140 100 70 32
250 DS50-250 78.5 1962.5 362 612 140 100 70 36
300 DS50-300 78.5 2355 412 712 140 100 70 39
100 50 DS100-50 153.9 769 182 232 180 140 100 32
100 DS100-100 153.9 1539 232 332 180 140 100 40
150 DS100-150 153.9 2308 282 432 180 140 100 48
200 DS100-200 153.9 3077 332 532 180 140 100 56
250 DS100-250 153.9 3846 382 632 180 140 100 64
300 DS100-300 153.9 4615 432 732 180 140 100 72
150 50 DS150-50 201 1005 196 246 216 160 115 42
100 DS150-100 201 2010 246 346 216 160 115 52
150 DS150-150 201 3014 296 446 216 160 115 62
200 DS150-200 201 4019 346 546 216 160 115 72
250 DS150-250 201 5024 396 646 216 160 115 72
300 DS150-300 201 6029 446 746 216 160 115 91
200 50 DS200-50 314 1570 216 266 268 200 150 62
150 DS200-150 314 4710 316 466 268 200 150 92
200 DS200-200 314 6280 366 566 268 200 150 107
300 DS200-300 314 9420 466 766 268 200 150 137
250 100 DS250-100 363 3629 265 365 285 215 165 123
150 DS250-150 363 5443 335 485 285 215 165 141
200 DS250-200 363 7257 385 585 285 215 165 159
300 DS250-300 363 10886 485 785 285 215 165 195
300 100 DS300-100 452 4522 362 462 320 240 190 237
150 DS300-150 452 6782 412 562 320 240 190 261
200 DS300-200 452 9043 462 662 320 240 190 285
300 DS300-300 452 13564 562 862 320 240 190 333
400 100 DS400-100 572 5723 425 525 367 270 220 293
150 DS400-150 572 8584 475 625 367 270 220 332
200 DS400-200 572 11445 525 725 367 270 220 362
300 DS400-300 572 17168 625 925 367 270 220 421
500 100 DS500-100 707 7065 469 569 400 300 240 316
150 DS500-150 707 10597 519 669 400 300 240 480
200 DS500-200 707 14130 569 869 400 300 240 433
300 DS500-300 707 21195 669 969 400 300 240 599
500 DS500-500 707 35325 869 1369 400 300 240 782
600 100 DS600-100 855 8548 479 549 445 330 270 791
150 DS600-150 855 12823 529 679 445 330 270 565
200 DS600-200 855 17097 579 779 445 330 270 637
300 DS600-300 855 25646 679 979 445 330 270 701
500 DS600-500 855 42723 879 1379 445 330 270 815
800 100 DS800-100 1194 11940 524 624 550 390 320 766
150 DS800-150 1194 17910 574 724 550 390 320 868
200 DS800-200 1194 23880 624 824 550 390 320 996
300 DS800-300 1194 35820 724 1024 550 390 320 1058
500 DS800-500 1194 59699 924 1424 550 390 320 1274
1000 100 DS1000-100 1451 14515 614 714 600 430 350 1022
150 DS1000-150 1451 21772 664 814 600 430 350 1194
200 DS1000-200 1451 29029 714 914 600 430 350 1267
300 DS1000-300 1451 43544 814 1114 600 430 350 1486
