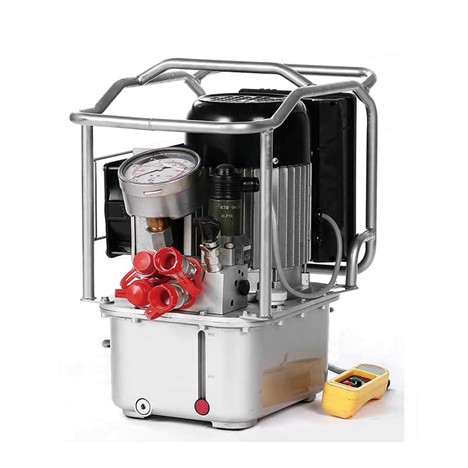

Pipeontec offers a high-performance range of hydraulic pumps and accessories built to provide reliable, efficient, and safe hydraulic power for all your bolting applications. Designed with advanced flow-pressure control and robust construction, our hydraulic pumps ensure consistent output and precise control for torque wrenches, bolt tensioners, and other hydraulic tools.
Quick Enquiry
Product Details
Product Specification
Key Features
Smart 3-Speed Flow Design
Our hydraulic pumps feature an intelligent 3-speed flow-pressure system that replicates manual operation:
-
High speed for light loads
-
Controlled, low speed for heavy loads
This ensures precision tightening and prevents over-torquing or underloading.
Multi-Tool Capability
Operate two hydraulic torque wrenches simultaneously, or expand to four tools with optional customization—ideal for complex, multi-bolt flange operations.
Lightweight & Durable
Crafted from Aluminum-Titanium alloy, the pump body offers high strength while remaining lightweight and portable, making it easy to move around work sites.
Temperature-Controlled Cooling System
Equipped with a high-efficiency radiator and smart fan, which automatically activates when oil temperature exceeds 35°C, ensuring optimal performance and preventing overheating during long operations.
Brushless High-Power Motor
The maintenance-free motor comes with a starting capacitor, allowing it to start under load with ease. The long service life and simple operation make it ideal for high-demand industrial environments.
Technical Specifications
-
Adjustable Output Pressure: 40 to 700 bar
-
Vibration-Resistant Pressure Gauge: Dual-scale readings in MPa and PSI with 1.0 grade accuracy
-
Oil Cooling: Smart fan-cooling system for extended operation
-
Control Interface: Compact manual pendant with dual-button control and 5-meter cord
-
Maintenance: Integrated modular design for quick servicing and part replacement
Why Choose Pipeontec Hydraulic Pumps?
- Fast and precise hydraulic response
- Reliable under extreme working conditions
- Long operational life with minimal downtime
- Engineered for mobility and rugged use
- Compatible with a wide range of bolting tools and systems
Power That Delivers
From construction sites to offshore platforms, Pipeontec’s Hydraulic Pumps & Accessories deliver the power and precision you need for your hydraulic tool systems. Whether you’re tensioning critical flanges or operating high-torque wrenches, trust in our pumps to perform—every time.
Specification Table
| Model | Output port | Power | Pressure(MPa) | Flow(L/min) | Oil tank(L) | Dimension(mm) | Weight(KG) | ||||
| High | Medium | Low | High | Medium | Low | ||||||
| SP304-2 | 4X1/4 NPT | 220V 1.1KW | 70 | 32 | 6 | 0.8 | 1.6 | 8 | 7.6 | 394*300*420 | 27 |
| SP304-4 | 8X1/4 NPT | 220V 1.1KW | 70 | 32 | 6 | 0.8 | 1.6 | 8 | 7.6 | 394*300*420 | 27.5 |
