Pipe Freezing Service
Overview
Our Freezing service team is highly experience and competent to undertake critical applications involving large diameter freezing, well head freezing, etc.
Features
- No Shutdown No Water Draining
- Covering Variety of Pipe Materials (CS, SS, Copper, Alloy Steel)
- Possible to Freeze Water and Water bases fluids, Crude Oil etc
- No Change in Pipe Material During or After the Freezing Operation
Benefits
- Fast and Safe Method of Isolation
- Economical and Cost-Effective Solution
- Avoid Costly System Shutdown
- Can be Executed Fairly Quickly
Technical Specification
| Parameter | Metric | Imperial |
|---|---|---|
| Min Pipe Dia | 12 mm | 0.5 inch |
| Max Pipe Dia | 609 mm | 24 inch |
| Max Pipe Temperature | Upto 120° C | Upto to 248°F |
| Refrigents Used |
Liquid Nitrogen Carbon dioxide |
|
| Material covered |
Carbon Steels Stainless Steel Aluminum Alloys Epoxy Coated Pipes Nickel Alloys Cast Iron Copper-based Alloys |
|
| Line Medium Commonly Frozen |
Freshwater Glycol solutions Seawaters Effluents / Sewage Produced water Sludge's Crude oil Fuel oils Lubrication oils Various chemical product |
|
Frequently Asked Questions
What is Pipe Freezing

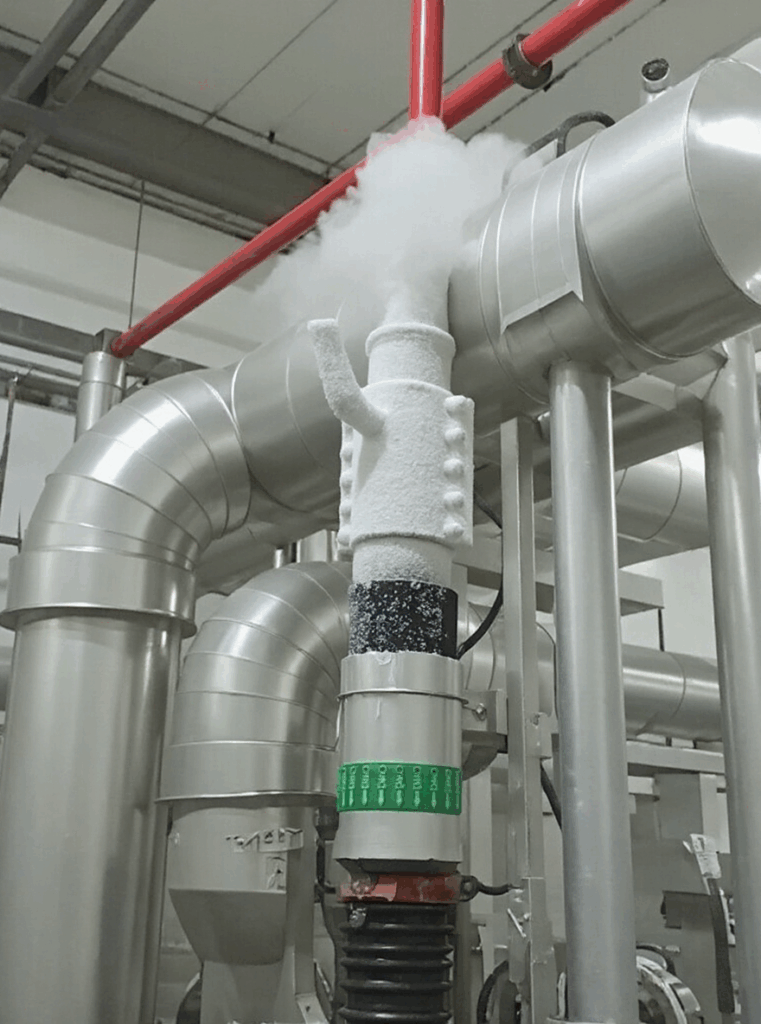

Pipe Freezing is a method that uses an ice plug to temporarily block a section of a pipeline, allowing maintenance or modifications without draining the entire system.
What are different Pipe Materials and Fluids that Can Be Frozen?
Pipeontec commonly work with materials like carbon steel, stainless steel, and copper alloys. It’s effective for fluids such as Chiled water, Cooling water, Crude oil, Bolier Feed Water, Sea Water and water based fluids and chemicals.
How Long Does It Take to Form an Ice Plug?
The freezing time varies with the pipe diameter. Small pipes upto 4″ can be frozen less than an hour however large sizes in the range 20″ or above can take upto 12hour to freeze.
What Industries Use Pipe Freezing?
The service is widely used in Utility markets, District cooling networks, Oil and gas industry, Offshore and Onshore Well heads etc.
Advantages of Freezing over Other Isolation Methods?
Pipe Freezing is often faster and more cost-effective option than conventional methods like shut-down and system draining, especially in complex systems that do not allow system shut down.
What is the Pipe Temperature Required for Freezing?
The exact temperature depends on the fluid and pipe material, but typically, temperatures below -20°C (-4°F) are needed to form a reliable ice plug.
How Is the Ice Plug Removed After the Repair Done?
The ice plug is allowed to thaw (melt) naturally, restoring normal flow through the pipeline without additional additives. Controlled heating option is available for rapid restoration of pipeline operation.
Can Pipeontec’s Be Used for Emergency Repairs?
Yes, Pipeontec’s is an excellent option for emergency repairs where immediate isolation is needed without shutting down the entire system.
Does Pipeontec’s Affect the Integrity of the Pipe?
No, when done correctly,Pipeontec’s does not damage the pipe. The process is controlled to ensure that the pipe’s structural integrity is maintained.
Pipeontec Pipe Freezing is available across the UAE in Dubai, Abu Dhabi, Al Ain, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain
